Dual Converter

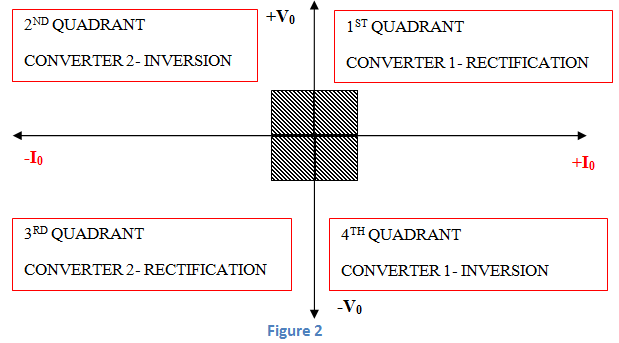

Dual converter, the name itself says two converters. It is really an electronic converter or circuit which comprises of two converters. One will perform as rectifier and the other will perform as inverter. Therefore, we can say that double processes will occur at a moment. Here, two full converters are arranged in anti-parallel pattern and linked to the same dc load. These converters can provide four quadrant operations. The basic block diagram is shown below.dual converter

Modes of Operation of Dual Converter

There are two functional modes: Non-circulating current mode and circulating mode.

Non Circulating Current Mode

You may also be interested on
Dual Converter

Circulating Current Mode

Ideal Dual Converter

The term ‘ideal’ refers to the ripple free output voltage. For the purpose of unidirectional flow of DC current, two diodes (D1 and D2) are incorporated between the converters. However, the direction of current can be in any way. The average output voltage of the converter 1 is V01 and converter 2 is V02. To make the output voltage of the two converters in same polarity and magnitude, the firing angles of the thyristors have to be controlled. ideal dual converter Average output voltage of Single-phase converter = Average output voltage of Three-phase converter = For converter 1, the average output voltage, For converter 2, the average output voltage, Output voltage, The firing angle can never be greater than 180o. So, ideal dual converter

Types of Dual Converters

They are of two types: Single-phase dual converter and three-phase dual converter.

Single Phase Dual Converter

The source of this type of converter will be single-phase supply. Consider, the converter is in non-circulating mode of operation. The input is given to the converter 1 which converts the AC to DC by the method of rectification. It is then given to the load after filtering. Then, this DC is provided to the converter 2 as input. This converter performs as inverter and converts this DC to AC. Thus, we get AC as output. The circuit diagram is shown below. single phase dual converter

Three Phase Dual Converter

Here, three-phase rectifier and three-phase inverter are used. The processes are similar to single-phase dual converter. The three-phase rectifier will do the conversion of the three-phase AC supply to the DC. This DC is filtered and given to the input of the second converter. It will do the DC to AC conversion and the output that we get is the three-phase AC. Applications where the output is up to 2 megawatts. The circuit is shown below. three phase dual converter

Application of Dual Converter


GGOURAV TYAGI commented on 23/05/2018
For counter circulating current we use inductance please explain how to calculate value of inductance for limiting circulating current
SSHUBHAM STARK commented on 08/05/2018
Thank you electrical4u team.
AANUBHAB commented on 22/03/2018
Thank you for the wonderful explanation. Keep it up.
CCHILUMULA AKHIL commented on 07/03/2018
Easy and simple way manner to understand. Thanks to electrical4u team.
